Simple System Sheet Metal Coping

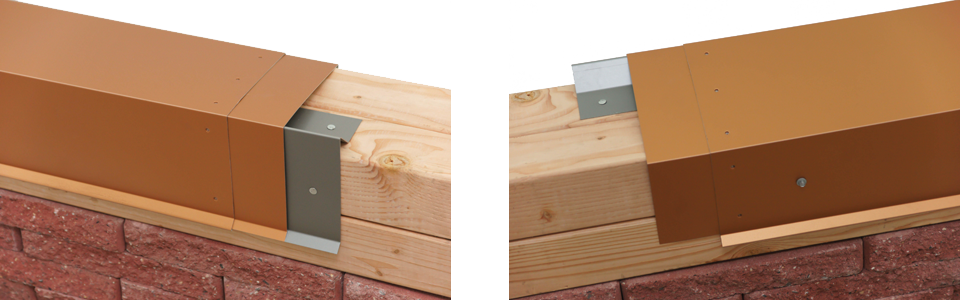

Simple system sheet metal coping. The picture shows simple system sheet metal coping with exposed fasteners.

Simple System Sheet Metal Coping Product Features

  • Simple system sheet metal coping is formed in 10 ft sections and joined to allow for longitudinal expansion and contraction
  • Continuous cleats are used on the side away from the roof in accordance with SMACNA recommendations to provide proper uplift protection
  • On the interior roof side sheet metal coping cap is fastened 24 in. OC with screws and watertight washers
  • Continuous cleat on the outside edge is fastened against the wall and forms an effective block to wind-driven rain
  • Individual sheet metal coping sections are joined with 6 in. back-up plates
  • Back-up plates can be factory pre-clinched for ease of installation and to avoid errors during mounting
  • Wide variety of colors and material thicknesses is available with short lead times
  • The coping of practically any width and height can be fabricated

Simple System Sheet Metal Coping Sketch Drawing

Several types are available. Please click on individual tabs to view.

Simple system sloped sheet metal coping sketch drawing. The image shows a sketch of metal coping installed over parapet wall.

Simple system sloped sheet metal coping sketch drawing. The image shows a sketch of metal coping installed over parapet wall.

Simple system existing slope sheet metal coping sketch drawing. The image shows a sketch of metal coping installed over parapet wall with existing slope.

Simple system sloped from center sheet metal coping sketch drawing. The image shows a sketch of metal coping installed over parapet wall with existing slope from center.

Materials

  • 27 Kynar 500 colors from Englert Color Chart are stocked in 0.032", 0.040", 0.050" Aluminum, 22 & 24 GA Steel
  • Mill finish products can be fabricated in various metal thicknesses
  • Stainless Steel, Copper and Zink are available with short lead times
  • Simple System sheet metal coping can also be fabricated from flat stock purchased off any available sheet metal manufacturer on the market (Drexel Metals, ATAS, PAC-CLAD, Firestone, etc.)

Warranty

  • 35 year color warranty when fabricated from Englert flat stock
  • Lifetime Total System warranty is available on commercial projects
