BM Exposed Fasteners Coping

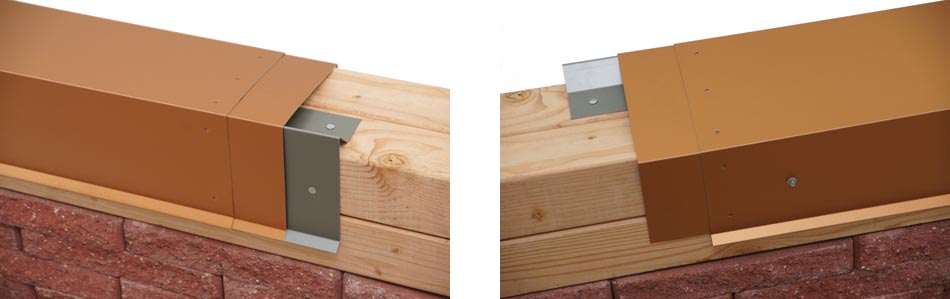

BM Exposed Fasteners Coping Header

This page shows an outdated, renamed or discontinued product. It was replaced by a superior version with same or better qualities yet more affordable pricing. Please call us for more information or visit our latest coping system selection.

Product Features

  • Continuous cleats are used on the side away from the roof in accordance with SMACNA recommendations to provide proper uplift protection
  • On the interior roof side coping is fastened 24 in. OC with screws and watertight washers
  • The coping is formed in 10 ft sections and joined to allow for longitudinal expansion and contraction
  • Continuous cleat on the outside edge is fastened against the wall and forms an effective block to wind-driven rain
  • Individual coping sections are joined with 6 in. back-up plates
  • Back-up plates can be factory pre-clinched for ease of installation and to avoid errors during mounting
  • Wide variety of colors and material thicknesses is available with short lead times
  • The coping of practically any width and height can be fabricated

Materials

  • 27 Kynar 500 colors from Englert Color Chart are stocked in 0.032″, 0.040″, 0.050″ Aluminum, 22 & 24 GA Steel
  • Mill finish products can be fabricated in various metal thicknesses
  • Stainless Steel, Copper and Zink are available with short lead times
  • BM Exposed Fasteners Coping can also be fabricated from flat stock purchased off any available sheet metal manufacturer on the market (Drexel Metals, ATAS, PAC-CLAD, Firestone, etc.)

Warranty

  • 35 year color warranty when fabricated from Englert flat stock
  • Lifetime Total System warranty is available on commercial projects

Documents

Product Data.pdfBM Exposed Fasteners Coping Data Sheet
Quote Request Form.pdfBM Exposed Fasteners Coping Interactive Quote Request Form
